Oracle Data Science Capstone project

Main Process (5 models)

Logistic Regression
Naive Bayes
Suppot Vector Machine
Random Forest Classification
XGBoost Classification
Comparison and Conclusion

# Main packages and functions
from sklearn.metrics import mean_squared_error
from statsmodels.tsa.stattools import adfuller
from statsmodels.graphics.tsaplots import plot_acf
from statsmodels.graphics.tsaplots import plot_pacf
from statsmodels.tsa.arima_model import ARIMA
from statsmodels.graphics.gofplots import qqplot
from statsmodels.tsa.arima_model import ARIMAResults
from scipy.stats import boxcox
# Load timeseries dataset
timeseries = importfile(file_id = '1bx2sY8TGrJ7DVRoZ_yjXxp3tQgqn4Zix')

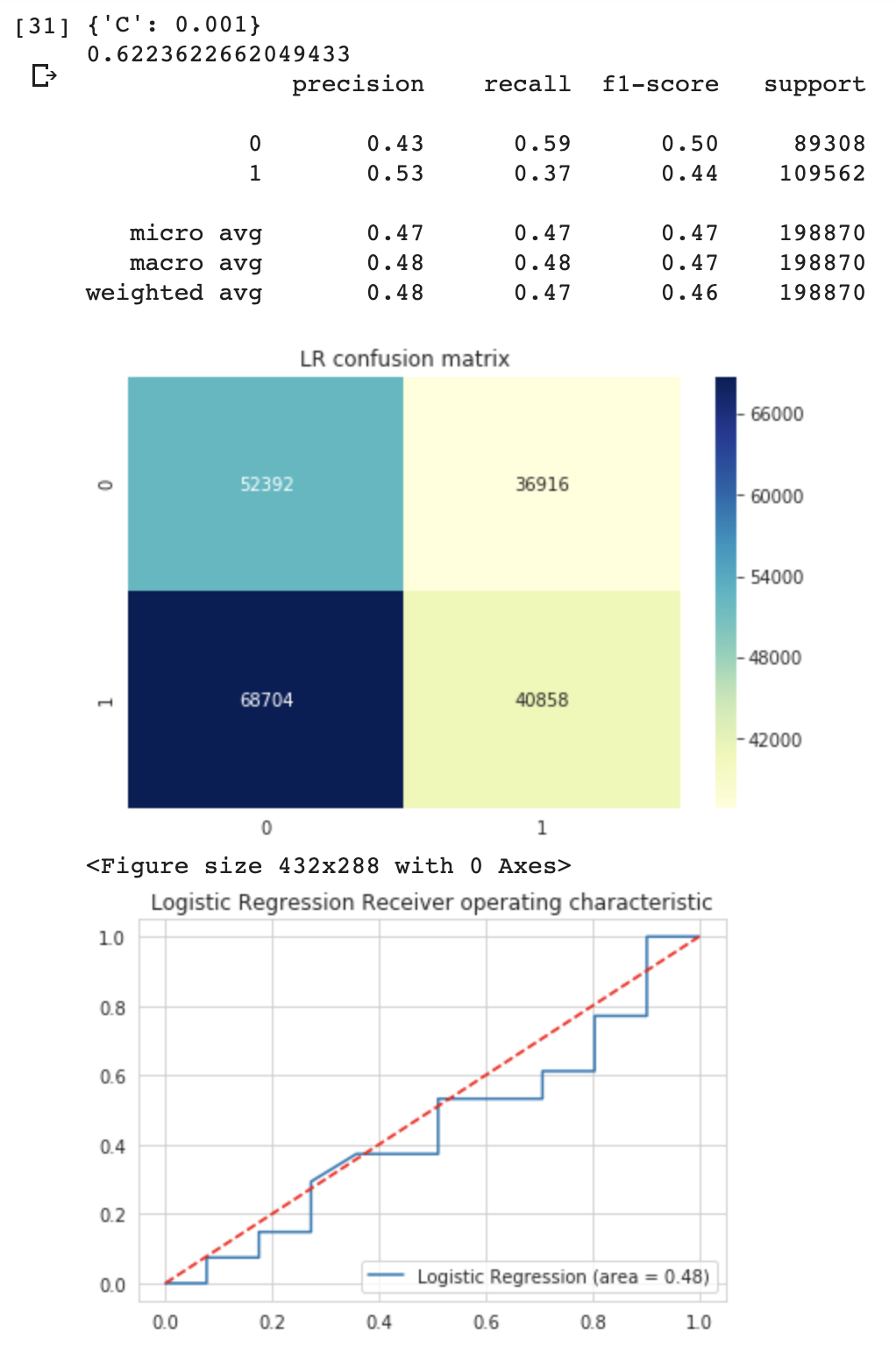

1. Logistic Regression

GridSearchCV to find the best_estimator and best_parameter
Print the classification_report
Plot confusion_matrix
Plot roc_auc_score

if __name__ == '__main__':
    train_data=pd.read_csv(os.path.join("/content",'train.csv'), index_col =0)
    test_data=pd.read_csv(os.path.join("/content",'test.csv'), index_col =0)
    X_train, X_test, y_train, y_test = get_data(train_data,test_data)
    # Set the parameters by cross-validation
    tuned_parameters = [{'C': [0.001, 0.01,0.1]}]
    grid = grid_search(tuned_parameters, X_train, y_train)
    best_estimator = grid.best_estimator_
    best_estimator.fit(X_train, y_train)
    y_pred = best_estimator.predict(X_test)
    report(y_test, y_pred)
    plot_confusion_matrix(y_test, y_pred,normalize=False)
    plot_roc_auc(X_test,y_test, y_pred)

Output:

log

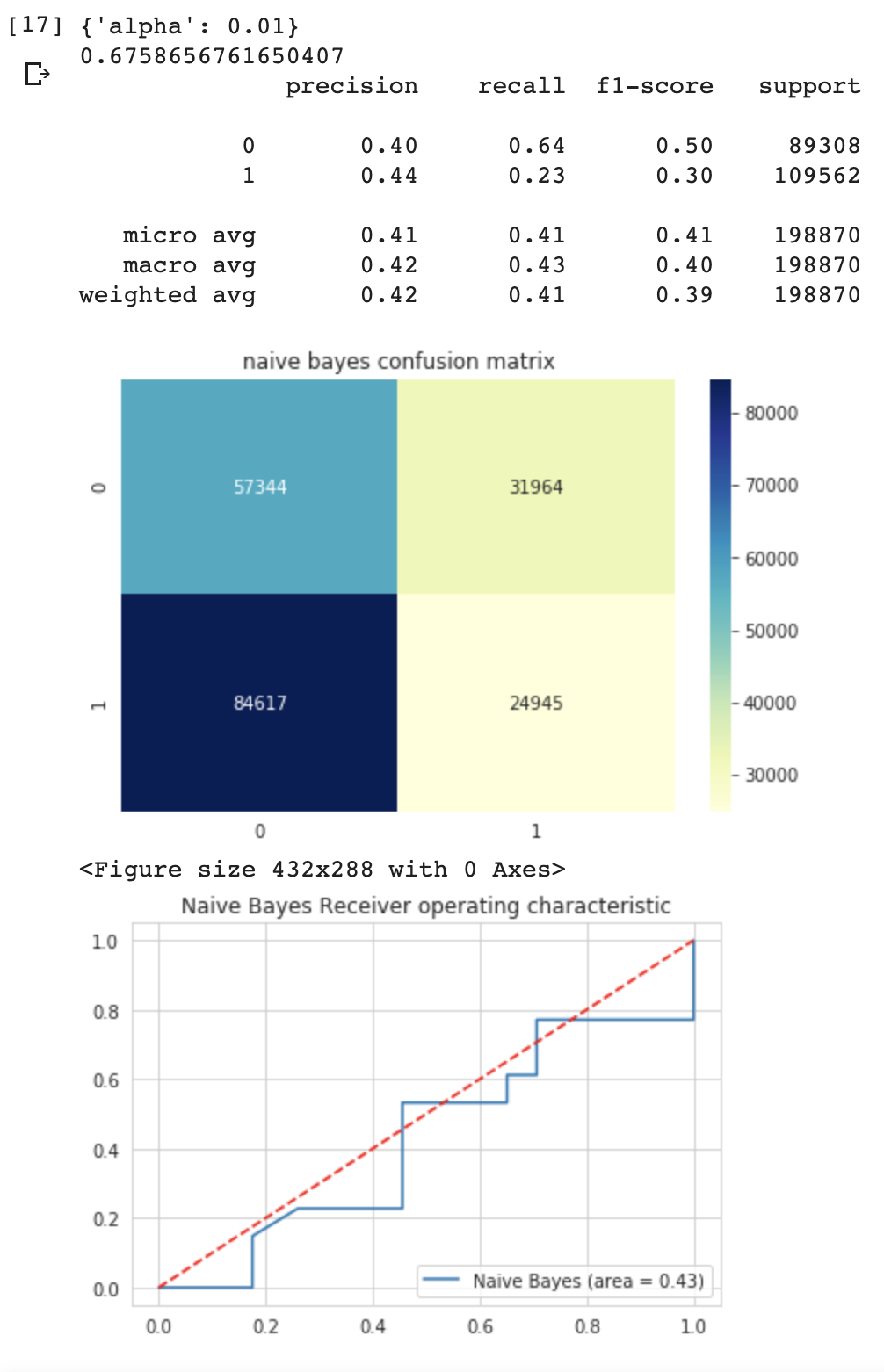

2. Naive Bayes

GridSearchCV to find the best_estimator and best_parameter
Print the classification_report
Plot confusion_matrix
Plot roc_auc_score

if __name__ == '__main__':
    train_data=pd.read_csv(os.path.join("/content",'train.csv'), index_col =0)
    test_data=pd.read_csv(os.path.join("/content",'test.csv'), index_col =0)
    X_train, X_test, y_train, y_test = get_data(train_data,test_data)
    # Set the parameters by cross-validation
    tuned_parameters = [{'alpha': [0.01, 0.1, 1]}]
    grid_naiv = grid_search(tuned_parameters, X_train, y_train)
    best_estimator = grid_naiv.best_estimator_
    best_estimator.fit(X_train, y_train)
    y_pred = best_estimator.predict(X_test)
    report(y_test, y_pred)
    plot_confusion_matrix(y_test, y_pred,normalize=False)
    plot_roc_auc(X_test,y_test, y_pred)

Output:

naiv

3. SVM

GridSearchCV to find the best_estimator and best_parameter
Print the classification_report
Plot confusion_matrix
Plot roc_auc_score

if __name__ == '__main__':
    train_data=pd.read_csv(os.path.join("/content",'train.csv'), index_col =0)
    test_data=pd.read_csv(os.path.join("/content",'test.csv'), index_col =0)
    X_train, X_test, y_train, y_test = get_data(train_data,test_data)
    #Set the parameters by cross-validation
    tuned_parameters = [{'kernel': ['rbf'], 'gamma': [1e-3, 1e-4],'C': [0.1, 1, 10]},
                        {'kernel': ['linear'], 'C': [0.1, 1, 10]}]
    grid_svm = grid_search(tuned_parameters, X_train, y_train)
    best_estimator = grid_svm.best_estimator_
    best_estimator.fit(X_train, y_train)
    y_pred = best_estimator.predict(X_test)
    report(y_test, y_pred)
    plot_confusion_matrix(y_test, y_pred,normalize=False)
    plot_roc_auc(X_test,y_test, y_pred)

Output:

svm

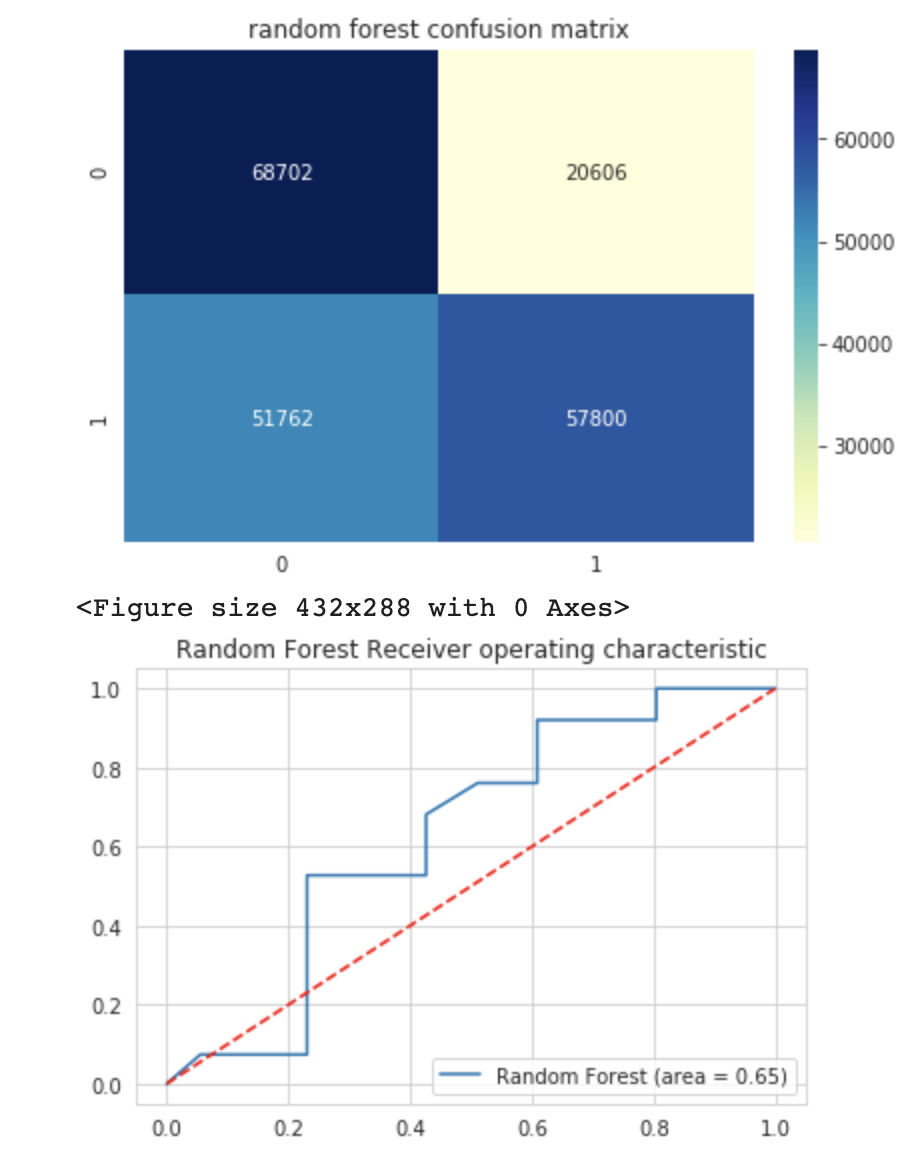

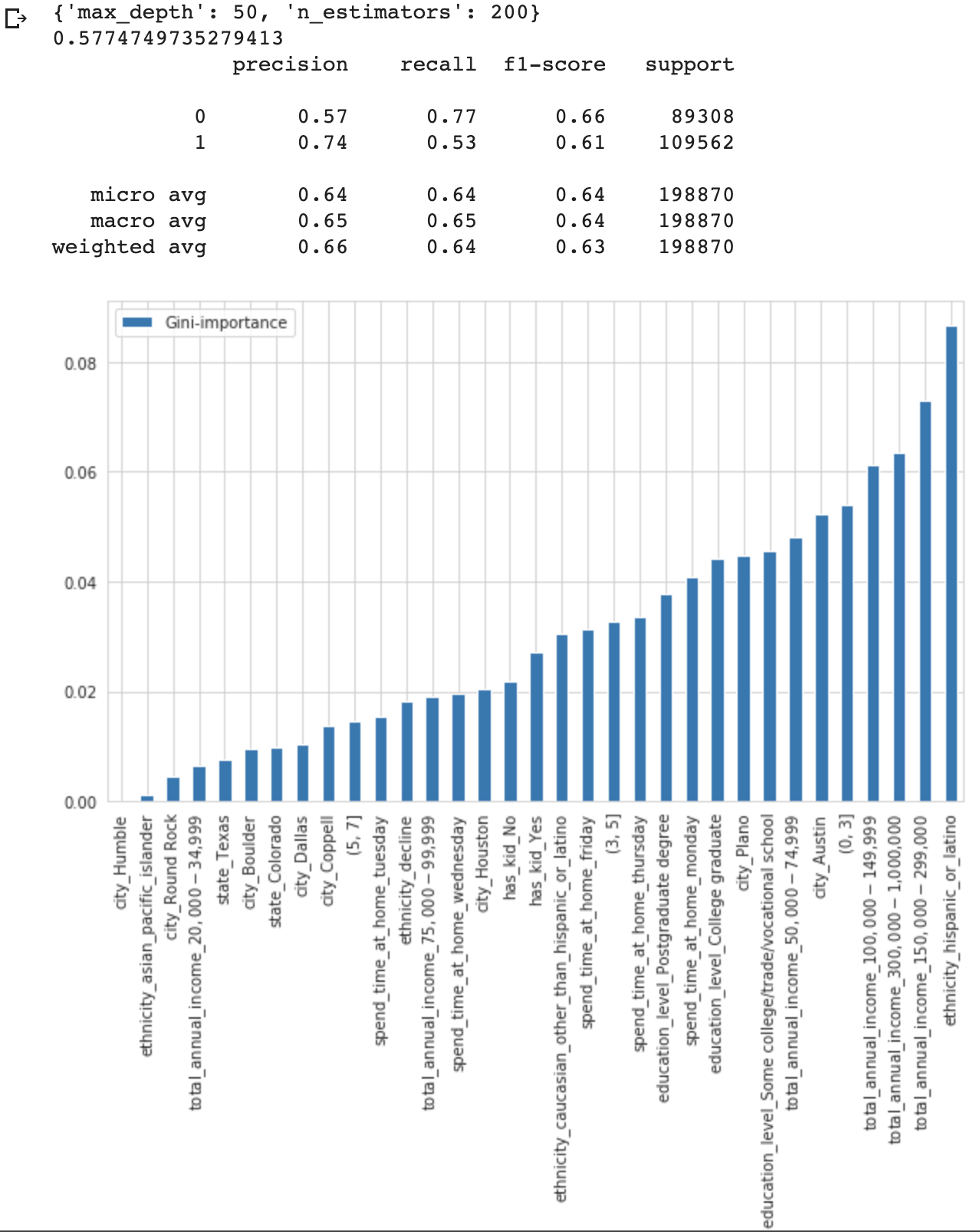

4. Random Forest Classification

GridSearchCV to find the best_estimator and best_parameter
Print the classification_report
Plot confusion_matrix
Plot roc_auc_score

if __name__ == '__main__':
    train_data=pd.read_csv(os.path.join("/content",'train.csv'), index_col =0)
    test_data=pd.read_csv(os.path.join("/content",'test.csv'), index_col =0)
    X_train, X_test, y_train, y_test = get_data(train_data,test_data)
    # Set the parameters by cross-validation
    tuned_parameters = [{'n_estimators': [100, 200],
    			 'max_depth': [10, 50, 100],
			 'min_samples_split': [2, 4],
			 'max_features': ['sqrt', 'log2']}]
    grid_rf = grid_search(tuned_parameters, X_train, y_train)
    best_estimator = grid_rf.best_estimator_
    best_estimator.fit(X_train, y_train)
    y_pred = best_estimator.predict(X_test)
    report(y_test, y_pred)
    imp = get_feature_importance(train_data)
    plot_confusion_matrix(y_test, y_pred,normalize=False)
    plot_roc_auc(X_test,y_test, y_pred)

Output:

rf1 rf2

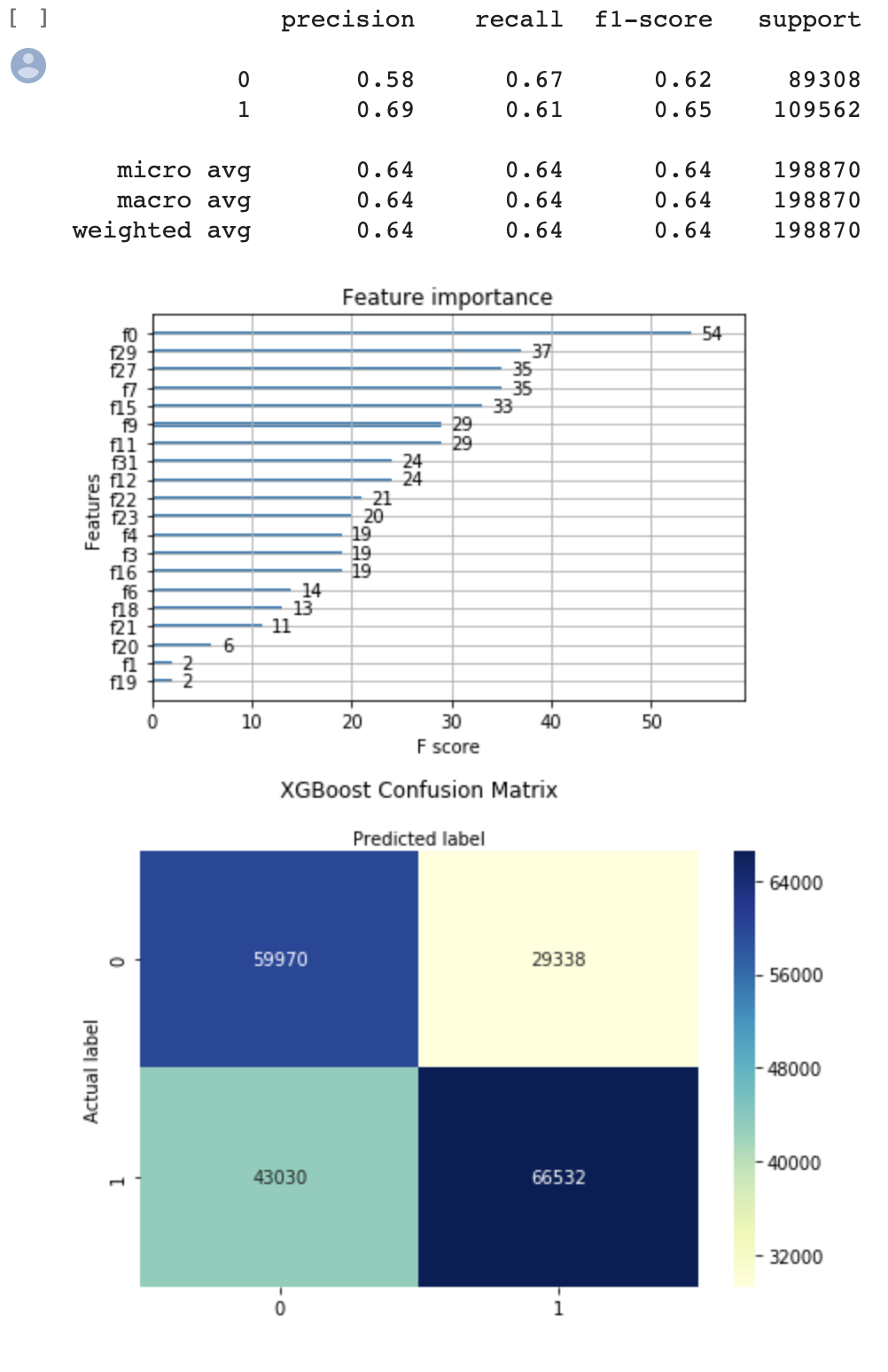

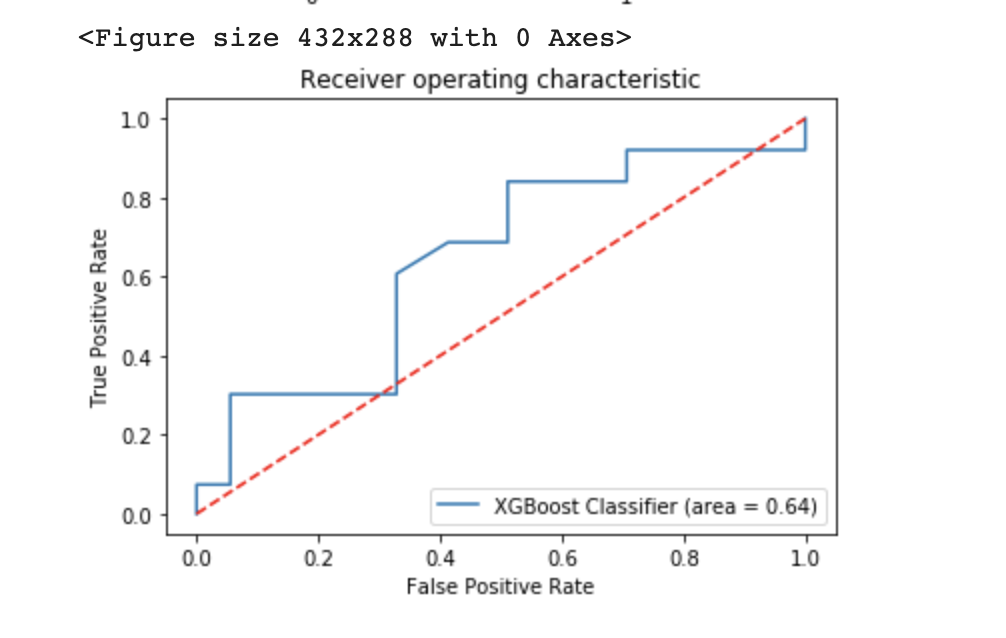

5. XGBoost Classification

GridSearchCV to find the best_estimator and best_parameter
Print the classification_report
Plot confusion_matrix
Plot roc_auc_score

if __name__ == '__main__':
    train_data=pd.read_csv('./train.csv', index_col =0)
    test_data=pd.read_csv('./test.csv', index_col =0)
    X_train, X_test, y_train, y_test = get_data(train_data,test_data)
    #model before grid search
    xgb = model(xgb.XGBClassifier(),X_train, y_train)
    y_pred = xgb.predict(X_test)
    report(y_test, y_pred)
    #grid search
    param = {'n_estimators': [100, 200, 300],
            'max_depth': [3, 4, 5],
            'min_child_weight': [1, 2, 3],
            'gamma': [0.1, 0.2, 0.3]}
    grid_search(grid_search(param,X_train,y_train))
    #plot
    plot_important_features(xgb)
    plot_confusion_matrix(y_test, y_pred,normalize=False)
    plot_roc_auc(X_test,y_test, y_pred,xgb)

Output:

xg1 xg2

6. Comparison and Conclusion

By looking at the roc_auc_score, it shows that Random Forest and XGBoost classification performs best.
